Product specifications
Material: high-strength alloy steel, aluminum alloy, titanium alloy, etc.
Surface coating types: anti-corrosion coating, anodizing, galvanizing, etc.
Tolerance range: ±0.01mm
Processing methods: precision forging, CNC turning, CNC milling, etc.
Quality inspection: ultrasonic flaw detection, three-coordinate measuring instrument, hardness test

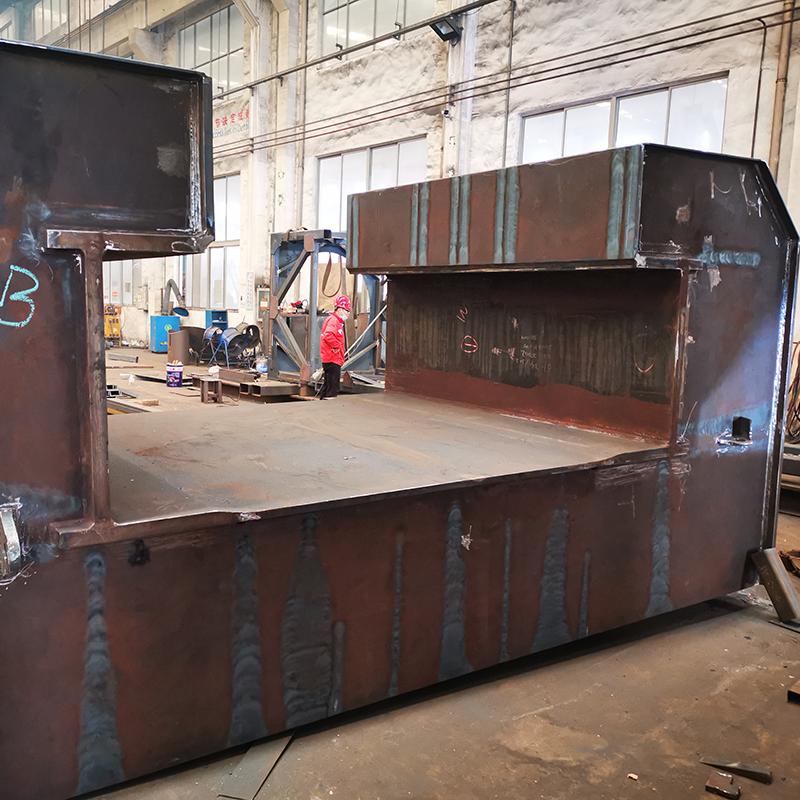

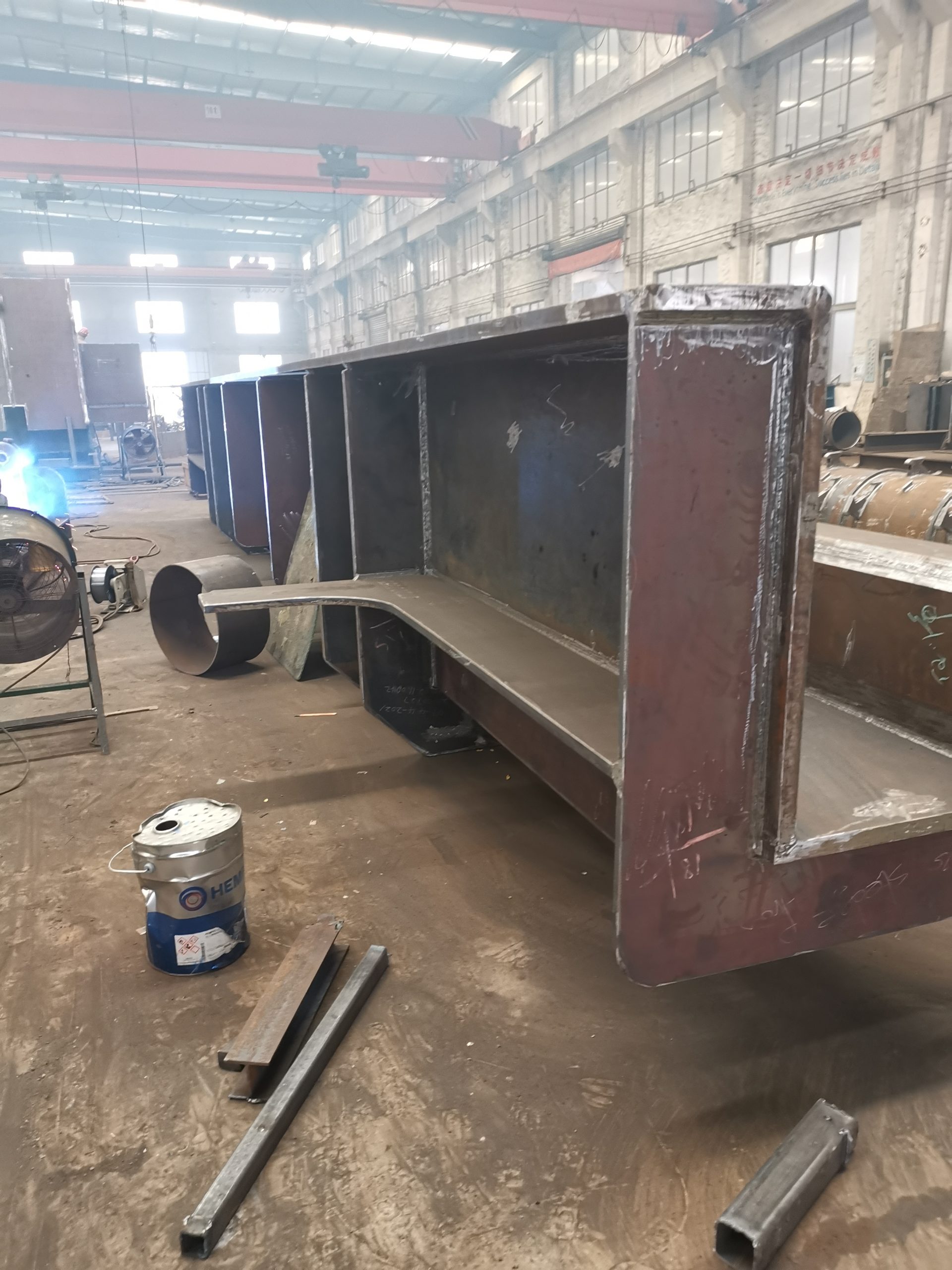

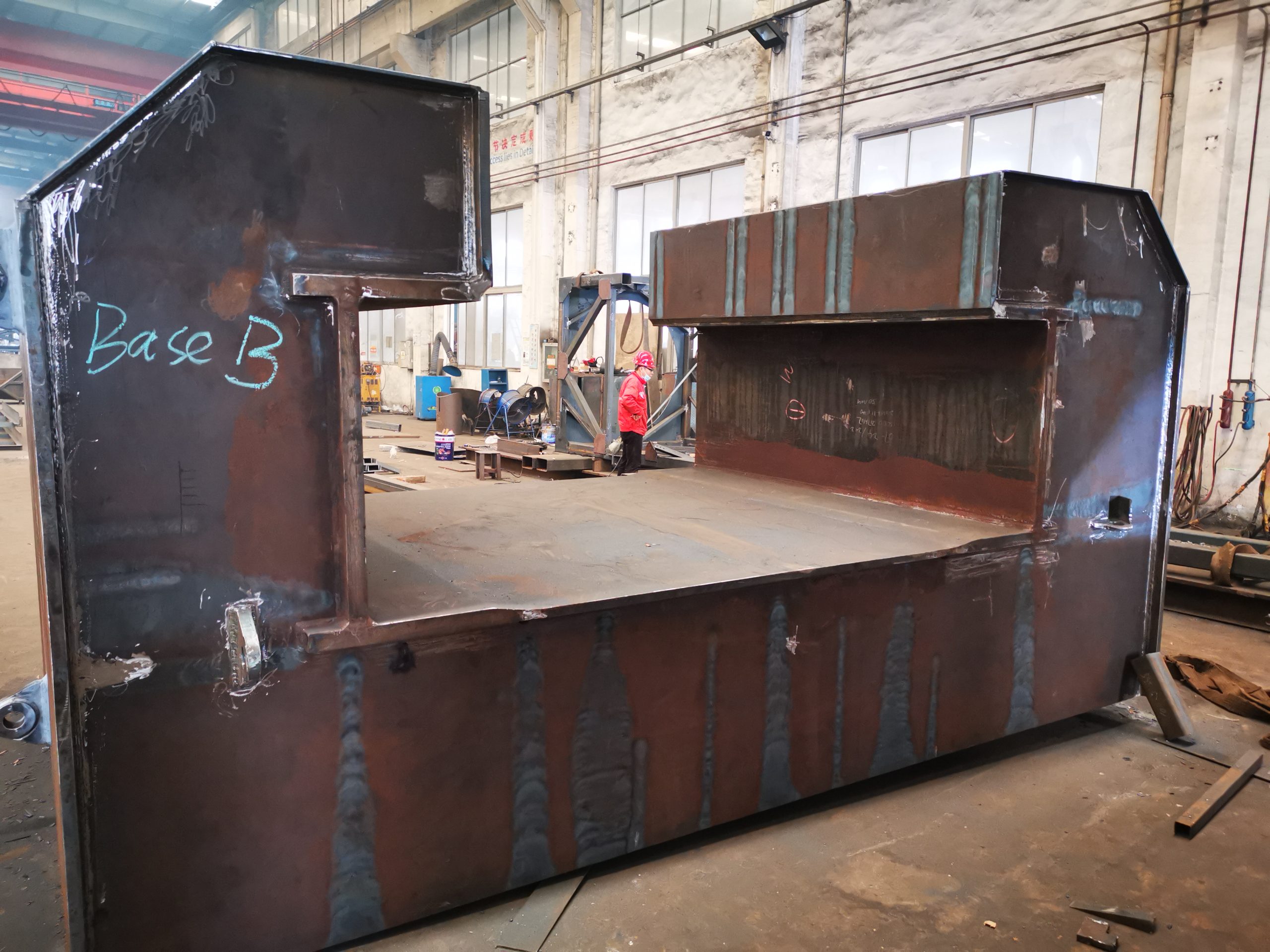

Mechanical equipment housing design
The mechanical equipment housing is a protective cover installed on the outside of the equipment. It is used to prevent people from entering the danger zone, being injured by exposed high-speed moving or transmission parts, or contacting with live conductors, or being injured by flying chips, workpieces, tools and other foreign objects. It plays a very important role. So, what issues should be paid attention to in the design of mechanical equipment housing? The following is a brief overview of the basic principles of industrial design of the appearance of mechanical equipment housing.
First of all, the industrial design of mechanical equipment housing should adhere to the people-oriented design principle. When designing safety protection, the human factor should be considered first to ensure the personal safety of the operator; the mechanical equipment housing is an isolation protection safety device, so the safety of the human-machine system should be solved in the design. For example, the structure and layout of the mechanical equipment housing should be reasonably designed so that the human body cannot directly enter the dangerous area.
Secondly, the industrial design of mechanical equipment housing must follow the principle of safety and reliability. The mechanical equipment housing device must meet the corresponding safety requirements to ensure sufficient strength, rigidity, stability, and corrosion resistance within the specified life cycle, which ensures that it has sufficient safety and reliability. The design of the mechanical equipment housing must also fully consider possible unsafe conditions. Such as special circumstances such as operating errors, accidents, and emergencies.
In addition, the industrial design of mechanical equipment housing should comply with the principle of reasonable layout and convenience for operators. Mechanical equipment may fail to repair or maintain during use, and these factors should be taken into account in the industrial design of the equipment housing. The design of the mechanical equipment housing is relatively complicated and cumbersome. It cannot blindly pursue the beauty of the appearance. It must be combined with the safety of the operator and the convenience of operation during use as the starting point of industrial design to make a good industrial design plan for the mechanical equipment housing.
1. Clarify the design goals and positioning
Before designing the mechanical equipment housing, the design goals and positioning must be clarified first. This includes understanding the product’s usage scenarios, user groups, functional requirements, and market positioning. Only by clarifying the design goals and positioning can we design in a targeted manner to ensure that the designed housing meets both actual needs and the user’s aesthetic needs.
2. Focus on functionality and practicality
The primary function of the mechanical equipment housing is to protect the internal mechanical structure and prevent it from being affected by the external environment. Therefore, when designing the housing, its structural strength, corrosion resistance, wear resistance and other factors must be fully considered to ensure that the housing can withstand the test of various harsh environments. At the same time, the design of the shell should also be convenient for users to maintain and maintain, such as easy to open, disassemble and clean.
3. Pursue beauty and uniqueness
On the basis of meeting functionality and practicality, the design of the mechanical equipment shell should also pursue beauty and uniqueness. Designers can create unique and attractive appearance by applying modern design concepts and aesthetic concepts. At the same time, the color matching and material selection of the shell are also important factors to improve the aesthetics, and should be selected according to the product positioning and user preferences.
4. Pay attention to ergonomic application
Ergonomics is of great significance in the design of mechanical equipment shells. Designers should fully consider factors such as the user’s operating habits and hand size when using the product to ensure that the design of the shell conforms to ergonomic principles and improve the user’s operating comfort and convenience. For example, the reasonable arrangement of control buttons and the optimization of handle design can improve the user experience.
5. Consider safety and environmental protection
Safety is a factor that cannot be ignored in the design of mechanical equipment shells. Designers should ensure that the shell will not cause any harm to the user during use, such as avoiding sharp edges and corners and using non-slip materials. At the same time, with the increasing awareness of environmental protection, the environmental protection of the shell has also become an important consideration. Designers should try to choose environmentally friendly materials to reduce pollution to the environment.
Mechanical manufacturing shell parts are widely used in various types of mechanical equipment, such as industrial equipment, agricultural machinery, medical equipment, household appliances, etc. Among them, industrial equipment is the most widely used, mainly including:
1. Industrial automation equipment: including various types of automated production lines, robots, etc. The chassis shell and various covers are important parts, mainly used to protect the internal parts of the equipment from the influence of the external environment, and play a supporting and fixing role.
2. Industrial testing equipment: such as X-ray, CT scanning and other testing equipment. The chassis shell and bracket bracket and other parts mainly play a supporting and protective role.
3. Industrial transmission equipment: such as gear transmission devices, reducers, etc. Various joints and pipe fittings are important parts, mainly used to connect and support various mechanical parts.
The appearance design of mechanical equipment should meet the product function requirements, fully reflect the material and spiritual function requirements of rational use of functions, pleasantness and environmental adaptability, and exquisite shape. When designing, the conditions such as structure, material, and process for realizing the shape should be fully considered, and on this basis, a good product with a sense of the times should be designed. At the same time, the appearance design of mechanical equipment should have a good three-dimensional effect and visual effect, that is, stability, coordination and uniformity, and good craftsmanship and artistry, and the lines should be simple and reasonable.
In addition, the appearance design of mechanical equipment should also conform to ergonomics. When determining any parameters and layout of the product shape, attention should be paid to the operation position, movement trajectory, work procedures and operator posture changes should meet the requirements of human function, and handle the details well, so that the human-computer interaction interface of the product is intuitive and reasonable, the operation is safe and easy, and provide users with a high-quality product experience.
In the process of mechanical equipment appearance design, sufficient design research, market analysis and strategic evaluation should be carried out to deeply understand the customer’s target users, competitors, brand characteristics and key market opportunities, take into account the product function, shape, man-machine and other requirements, give the product unique brand characteristics, formulate a reasonable design plan, and design a simple and beautiful, safe and easy to operate mechanical equipment that can meet the user’s use needs and emotional needs.
